Cutting System Repair Kit D223, CSPH 4 kW DN80, Bauer 3442236
Tax excluded.
Original Bauer Spare Part for Slurry Pumps
Original Bauer cutting system repair kit, diameter 223, with thick matter impeller and cutting disc, for the Bauer CSPH 4 kW submersible motor pump with DN80 outlet. Replacing impeller and cutting disc together restores the full cutting and pumping performance in one job.
Original Bauer part no.: 3442236. ProTesCa reference: PTC-000308.
Compatibility and Fitment
- Bauer CSPH 4 kW DN80
Bauer and FAN machines share the same engineering, so this part also fits the equivalent FAN model.
Not sure which part fits your machine? Send us the type plate details or serial number and we will check it for you.
Scope of Delivery and Installation

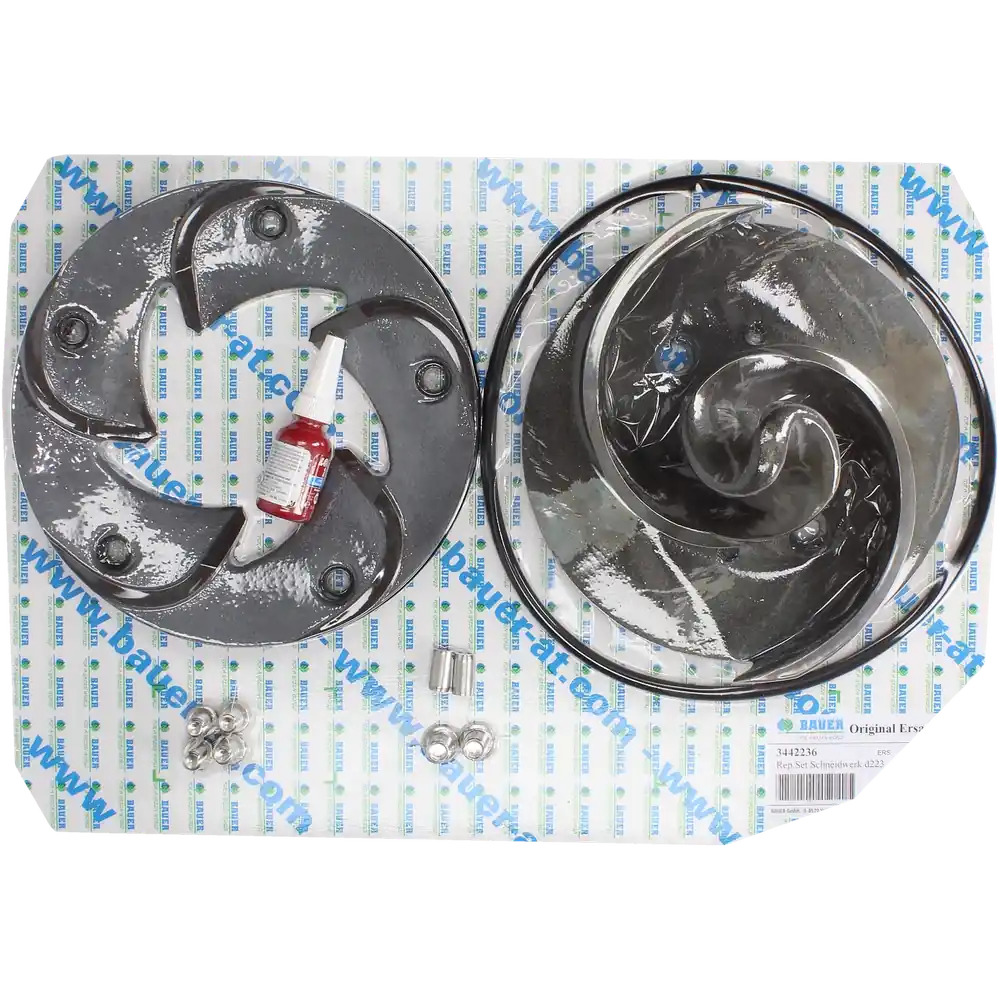

- 1 x Cutting System Repair Kit D223, CSPH 4 kW DN80 consisting of:
- 1 x thick matter impeller
- 7 x screw
- 2 x spring pin
- 2 x O-ring
- 1 x cutting disc
- Further small parts as per the Bauer kit specification
- Weight approx. 8.1 kg
Fit the cutting part on a clean, flat seat with new seals and tighten the screws evenly, using thread-locking adhesive where specified. Check the gap to the rotating cutting part and turn the shaft by hand before start-up.
Buying Guide
Check the Bauer part number 3442236 in your spare parts list before ordering, and check the impeller cutting edges at the same time, as both parts wear together.
